Underwater video and communication systems

Lightweight and compact

Technical specifications

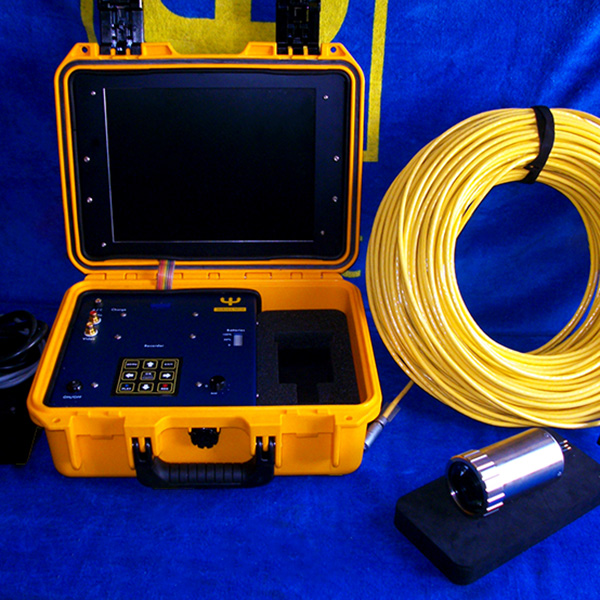

UVS100IP / UVS300IP – Video system



The UVS100IP and UVS300IP system are an ultra compact underwater video system that can operate on sector or on batteries. It can control up to 4 full HD cameras with integrated LED lighting, allowing to perform any type of underwater visual inspection, directly from the surface with a telescopic pole, via a diver (handle or headset) or on a fixed or mobile underwater stand.

Camera features

  • Max. depth.: UVS100RL: 100m – UVS300RL: 300m
  • Dimensions: diam. 66mm, length110mm
  • Weight: Acetal version 280g, Stainless steel version 820g
  • Lighting: integrated LED, 500 lumens with intensity control
  • Resolution: 700 TVL
  • Sensitivity: 0,01 lux

Console features

  • 12″ LCD screen
  • Batteries: NiMH accumulators (4h autonomy, 8h in option)
  • Recorder: Recorder/reader on SD card
  • Outputs: RCA connector for video display on external screen
  • Input: RCA for microphone
  • Weight: 6kg
  • Dimensions: 36cm x 29cm x 16cm
  • Camera fitting in the console

Equipment

  • Umbilical: 100m standard

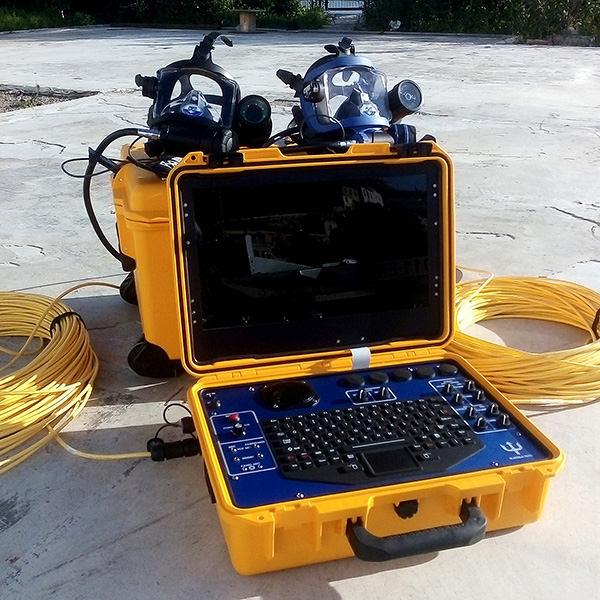

UVAS100RL – Video/communication system

The UVAS100IP is an ultra compact hybrid video and underwater communication system designed for professional divers and scuba divers. It is made up of 2 HD cameras with integrated lighting and 2 communication systems (earpieces + microphone) compatible with most of the face masks and headsets on the market (KMB, OTS, etc.).
The surface console allows to display and record simultaneously the video of the 2 divers and ensures the up/down communication with the supervisor. The console can optionally integrate a system of radio communication with a tender.

Camera features

  • Depth rating: 100m
  • Dimensions: diam. 66mm, length 110mm
  • Weight: 280g
  • Lighting: integrated LEDs , 500 lumens with controllable intensity
  • Resolution: full HD 1080p
  • Sensitivity: 0,01 lux

Surface unit features

  • PC with 17″ LCD splittable screen integrated in an IP65 Pelicase
  • Video and com. switches
  • Recording directly on PC or on external drive (USB, hard drive)
  • Separate volume control
  • Separate LED lighting control
  • Soft keypad and pad for PC control and text overlay
  • Weight: 11.5 kg
  • Dimensions: 47cm x 37cm x 18cm
  • Ports: HDMI, Ethernet, USB x 3
  • Batteries: NiMH (4h autonomy)

Equipment

  • Umbilical tether: 2x 80m as a standard



Towed underwater video IP

The towed video TUVS100IP has been specially developed for the acquisition of underwater images over long distances. Its integrated wing system allows its use at variable depths while ensuring maximum stability of the video. The depth of the camera varies according to the speed of the boat, the length of the cable and the weight of the unit.



VIDEO CAMERA FEATURES

  • Depth rating: 100m
  • Dimensions: ø 66mm x L 110mm
  • Weight: 820g
  • Lighting: integrated LED in camera housing (500 lumens), intensity control
  • Sensor: full HD 1080p ; 0,01 lux

CONSOLE FEATURES

  • Dimensions: W 470mm x D 370mm x H 180mm
  • Weight: 11,5 kg
  • Recorder: Built-in PC with 250 GB SSD (larger storage size available on request)
  • Ports: 1 HDMI, 1 RJ45 and 3 USB
  • Batteries: NiMH batteries, 24V – 4500mAh

TOWED WING FEATURES

  • Dimensions: L 327mm x W 182mm x H 182mm
  • Weight: 3 kg
  • Description: Hydrodynamic depression wing
  • Material: Polypropylene + 316L stainless steel protection frame
  • Camera tilt: Camera tilt adjustable (0-90°)



EQUIPMENT

  • Umbilical: 50m sinking cable with Kevlar braid (dia. 6,3mm) + Dynema cable + HDPE protection sheath
    Extension on demand.
