DEPTH RATED 150M
5 THRUSTERS
ULTRA PORTABLE
Guardian Micro-ROV

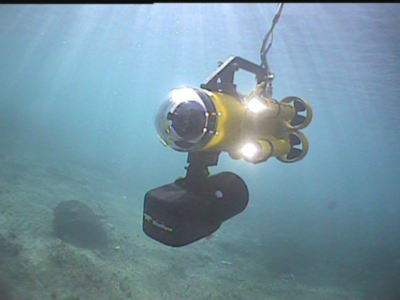

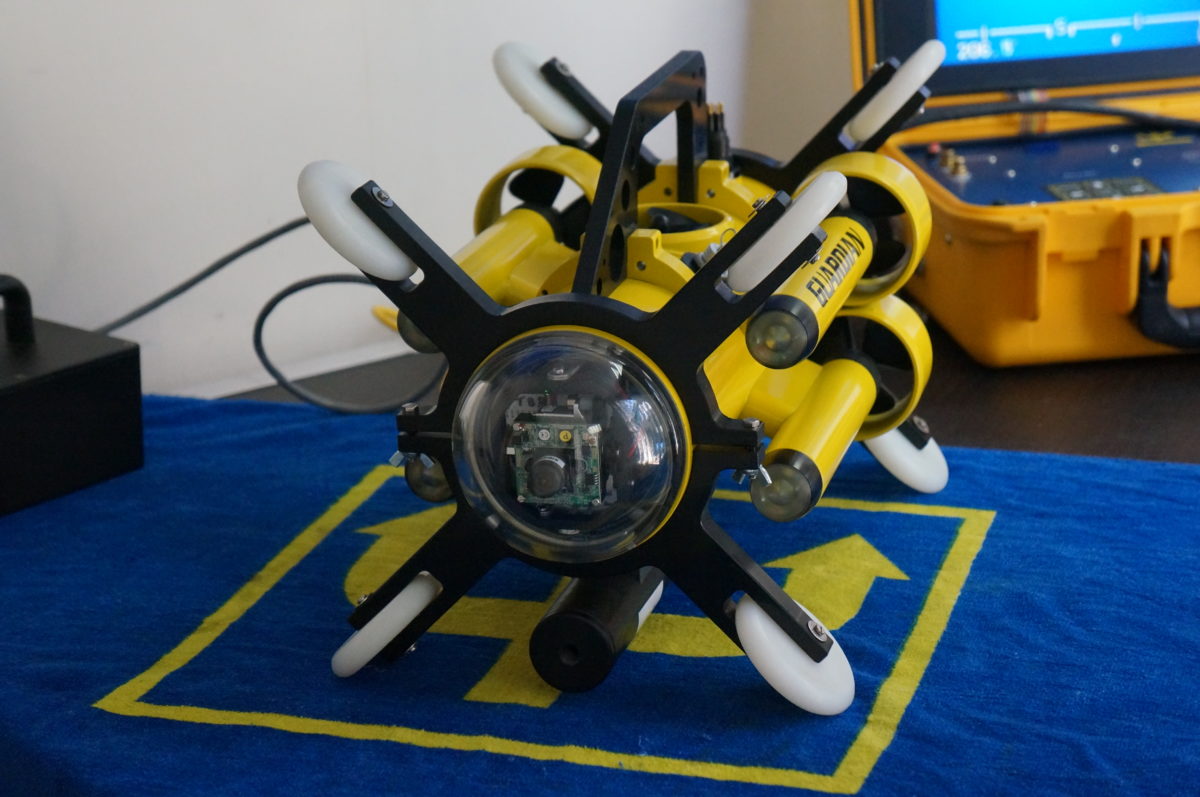

The Guardian is a lightweight and compact underwater inspection robot, operable at depths of up to 150 meters. Thanks to its four longitudinal thrusters, it can perform inspections over distances of up to 500 meters. Its optional interface allows the integration of various accessories such as sonars, probes, and manipulators. Its low weight and small size make it an extremely maneuverable tool, quick and easy to deploy by a single operator.
To meet all your needs, Subsea Tech offers different finish levels across its Micro-ROV range. Find the one that best suits you using the table below.
Need advice? Contact us!
| FINISH LEVELS | STARTER | MAX | ULTRA | |
|---|---|---|---|---|
| CAMERAS | Front Full HD 1080p camera | ● | ● | ● |
| Front pan & tilt | ● | ● | ● | |
| Rear Full HD 1080p camera | ● | ● | ||
| Rear tilt | ● | |||
| LIGHTING | 4 x 1200-lumen front LEDs with adjustable intensity | ● | ● | ● |
| 1000-lumen rear LED lighting with adjustable intensity | ● | ● | ||
| SENSORS & AUTO MODES | Humidity | ● | ● | ● |
| Temperature | ● | ● | ● | |
| Pressure / Depth | ● | ● | ● | |
| Compass | ● | ● | ||
| Automatic modes | ● | ● | ||
| ACCESSORY PORTS & MOUNTS | Basic | ● | ● | ● |
| Additional | ● | |||
| UMBILICAL | Umbilical length* | 100 m | 100 m | 150 m |
| CONTROL | PC + controller | ● | ● | ● |
| Semi-rugged PC + joystick control box | ○ | ○ | ○ | |
| Integrated 17" console | ○ | ○ | ○ | |
| TRANSPORT | Pelicase | ● | ● | ● |
