Underwater video systems

Lightweight and compact

UVS100IP / UVS300IP – Video system

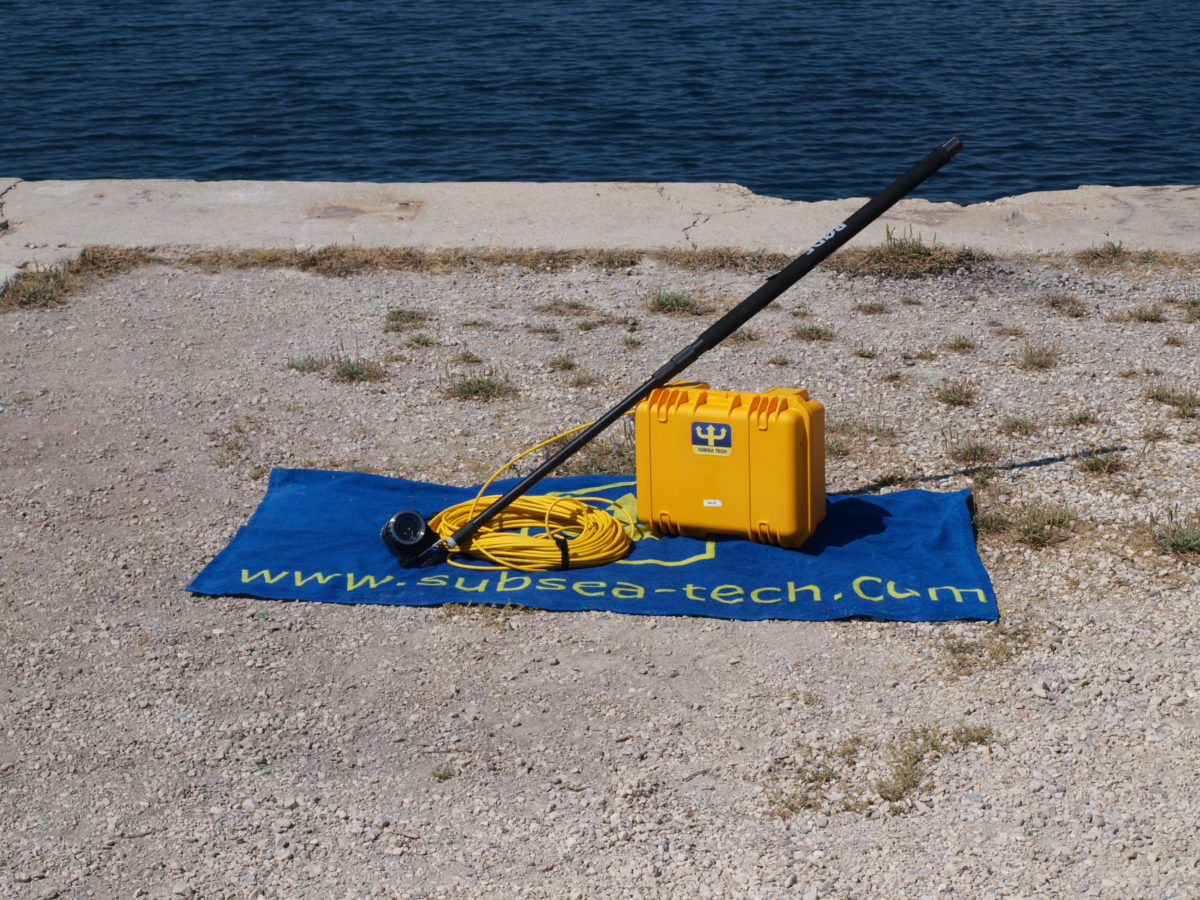

  The UVS100IP and UVS300IP system are an ultra compact underwater video system that can operate on sector or on batteries. It can control up to 4 full HD cameras with integrated LED lighting, allowing to perform any type of underwater visual inspection, directly from the surface with a telescopic pole, via a diver (handle or headset) or on a fixed or mobile underwater stand.

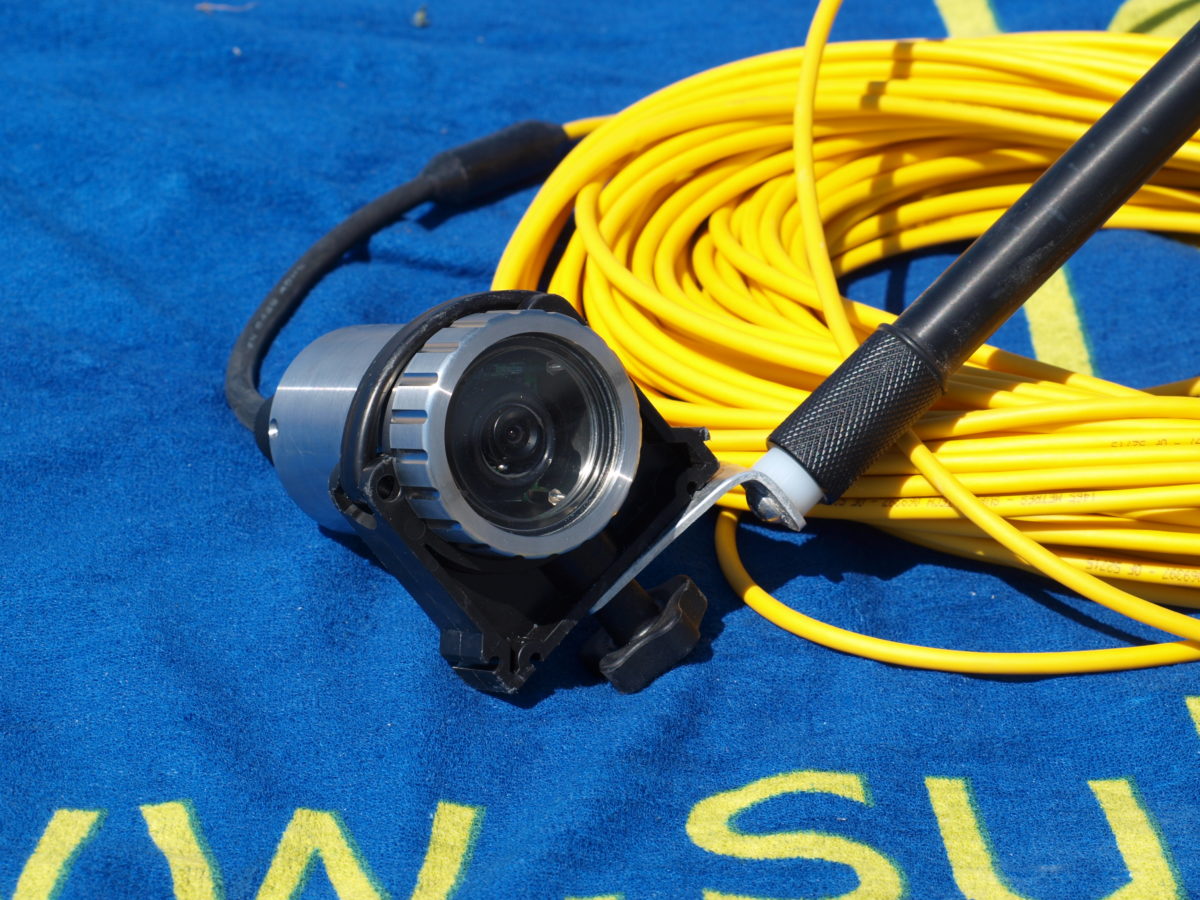

Camera features

  • Max. depth UVS100IP: 100m – UVS300IP: 300m
  • Dimensions: diam. 66mm, length 110mm
  • Weight: POM version 280g, stainless steel version 820g
  • Lighting: Integrated LEDs, 2400 lumens with intensity control
  • Resolution: Full HD 1080p
  • Sensitivity: 0.01 lux

Console features

  • Screen: 17″ anti-glare screen
  • Batteries : NiMH batteries (4h of autonomy, 8h in option)
  • Recorder: Digital recorder/player on SD card
  • Weight : 11,5 kg
  • Dimensions : W 470 mm x D 370 mm x H 180 mm
  • Ports: 1 HDMI, 1 RJ45 and 3 USB

Equipment

  • Umbilical: 100m as standard

Towed underwater video IP

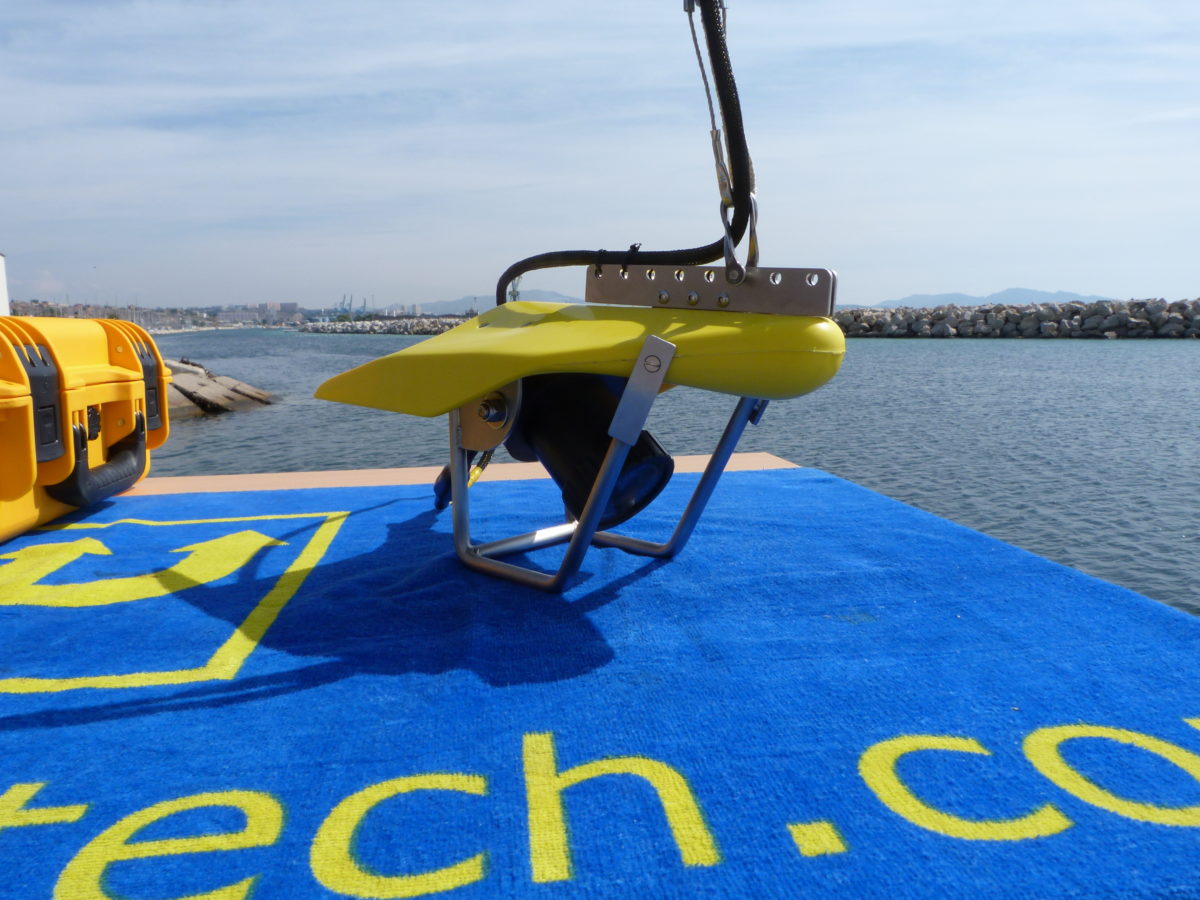

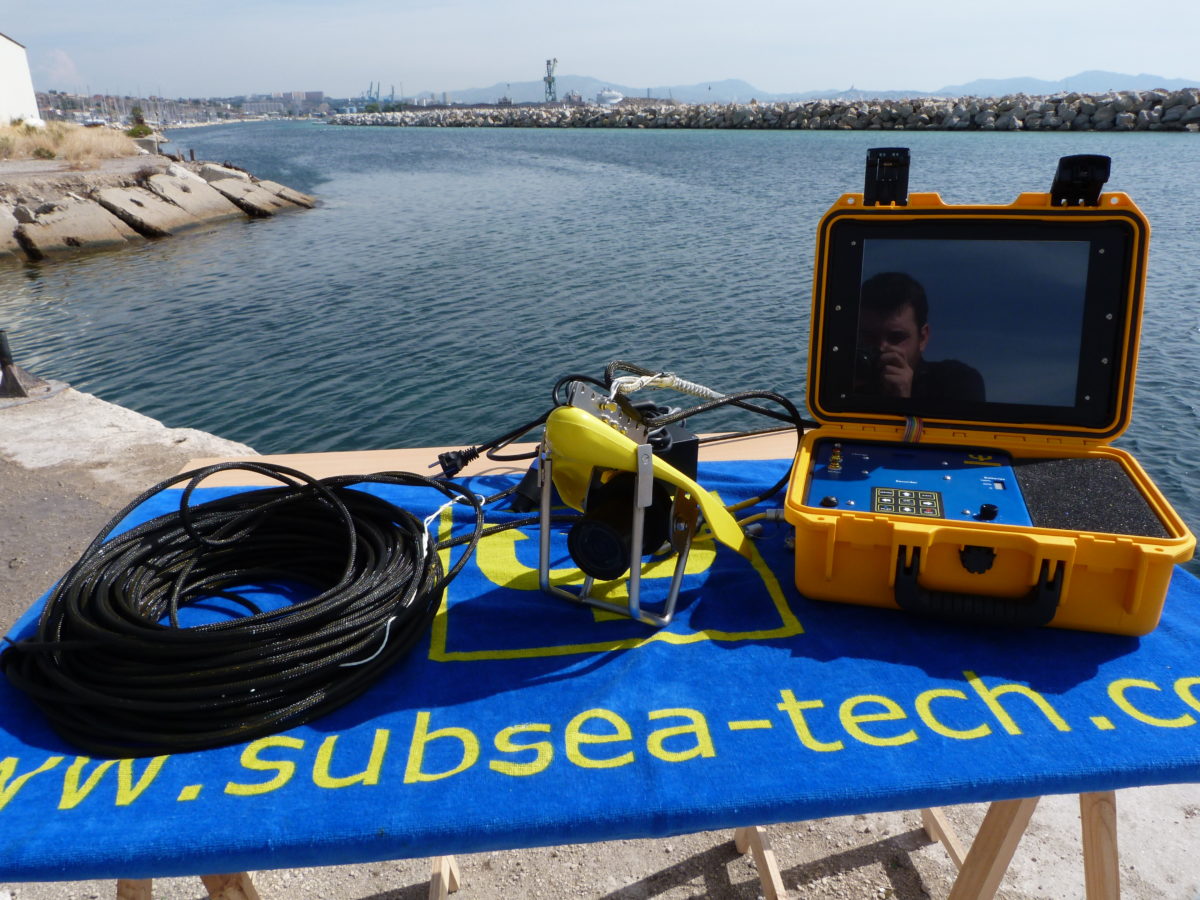

The towed video TUVS100IP has been specially developed for the acquisition of underwater images over long distances. Its integrated wing system allows its use at variable depths while ensuring maximum stability of the video. The depth of the camera varies according to the speed of the boat, the length of the cable and the weight of the unit.

Camera features

  • Max. depth : 100m
  • Dimensions: diam. 66mm, length 110mm
  • Weight: 820g
  • Lighting: integrated LEDs, 2400 lumens with intensity control
  • Resolution: full HD 1080p
  • Sensitivity: 0.01 lux

Console characteristics

  • Dimensions: W 470 mm x D 370 mm x H 180 mm
  • Weight: 11.5 kg
  • PC with shareable 17″ LCD screen integrated in a Pelicase IP65
  • Recorder: Built-in PC with 250 GB SSD (larger storage size available on request)
  • Ports: 1 HDMI, 1 RJ45 and 3 USB
  • Batteries : NiMH batteries, 24V – 4500mAh

Characteristics towed wing

  • Dimensions : L 327 mm x W 182 mm x H 182 mm
  • Weight : 3 kg
  • Description : Hydrodynamic vacuum wing
  • Materials : Polypropylene + 316L stainless steel protection frame
  • Camera position : Adjustable camera tilt angle (0-90°)

Equipment

  • Umbilicals: 50m flowing (Ø 6,3mm) with Kevlar braid + Dynema cable + HDPE protective sock
  • Optional extensions.
