DEPTH RATED 150M
AUTONOMY 4H
3 THRUSTERS
ULTRA PORTABLE

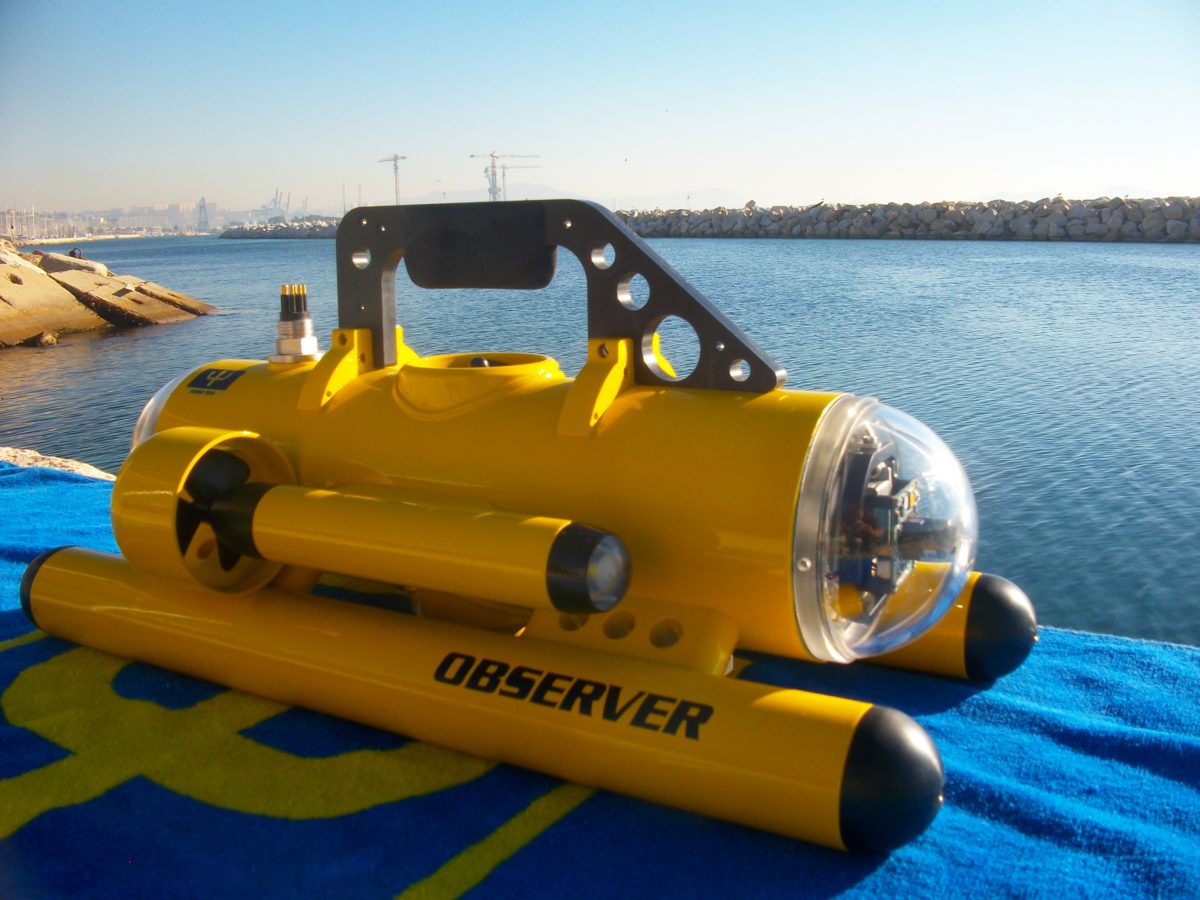

Micro-ROV Observer

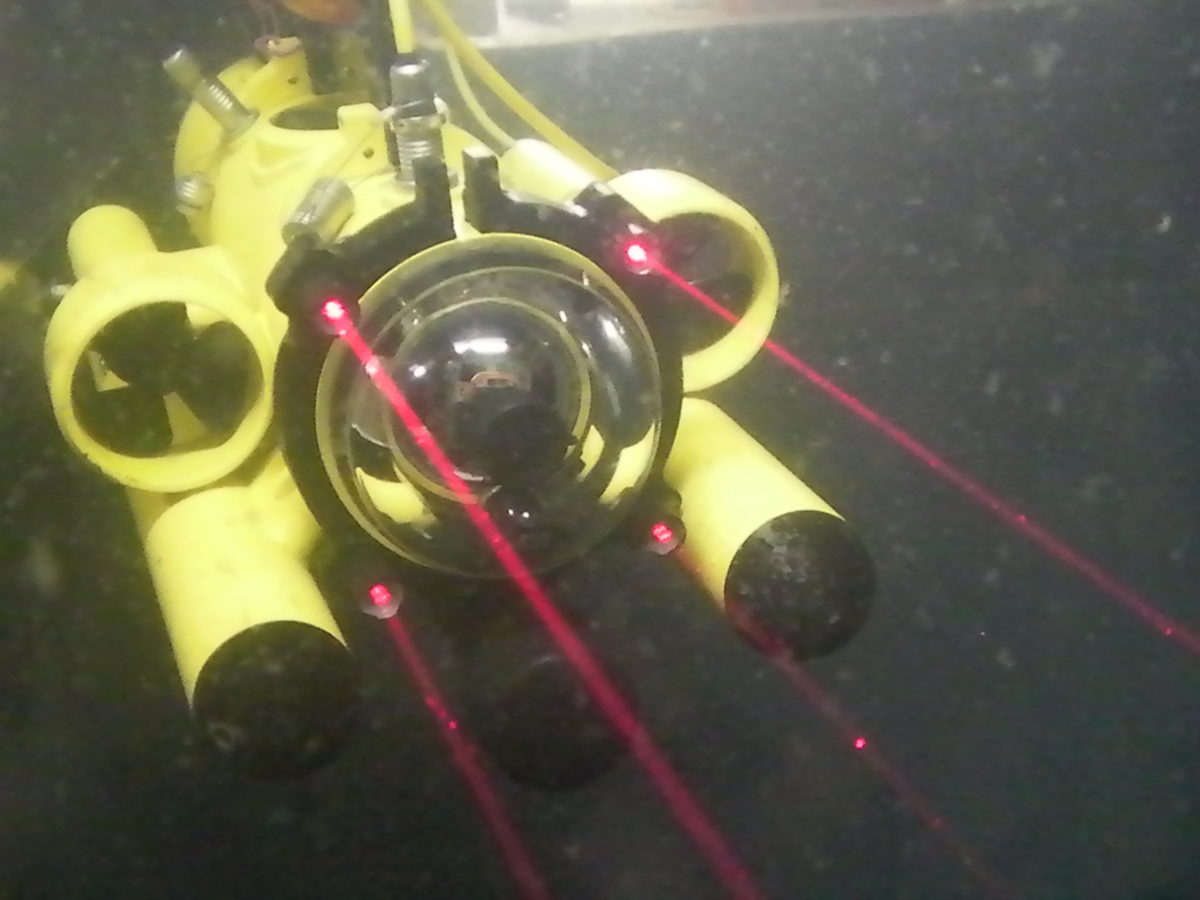

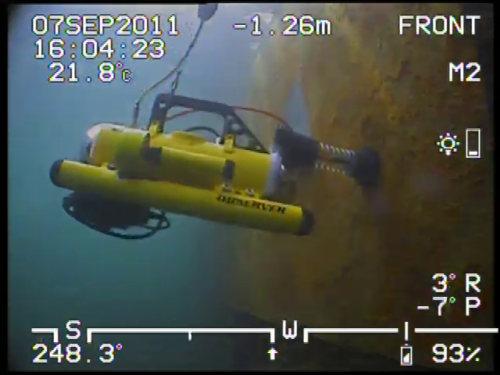

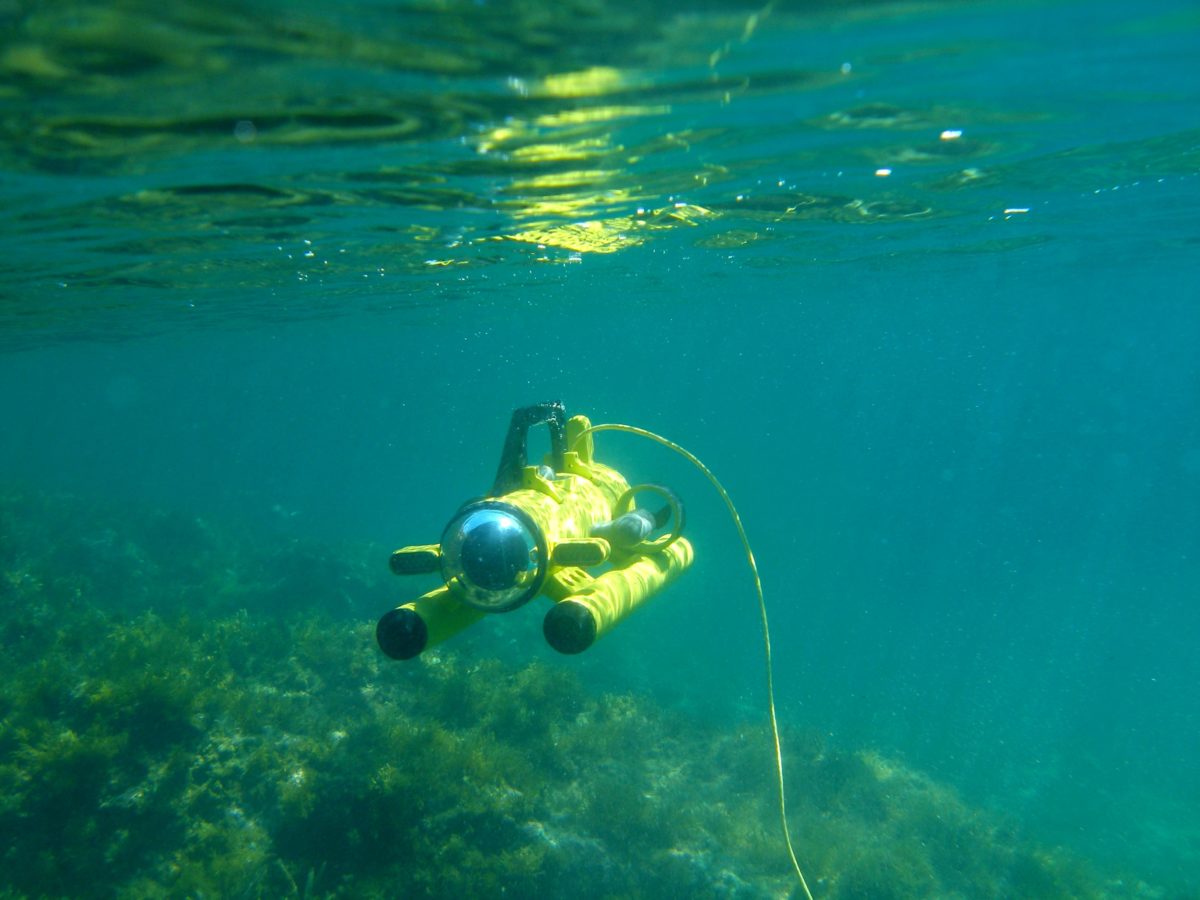

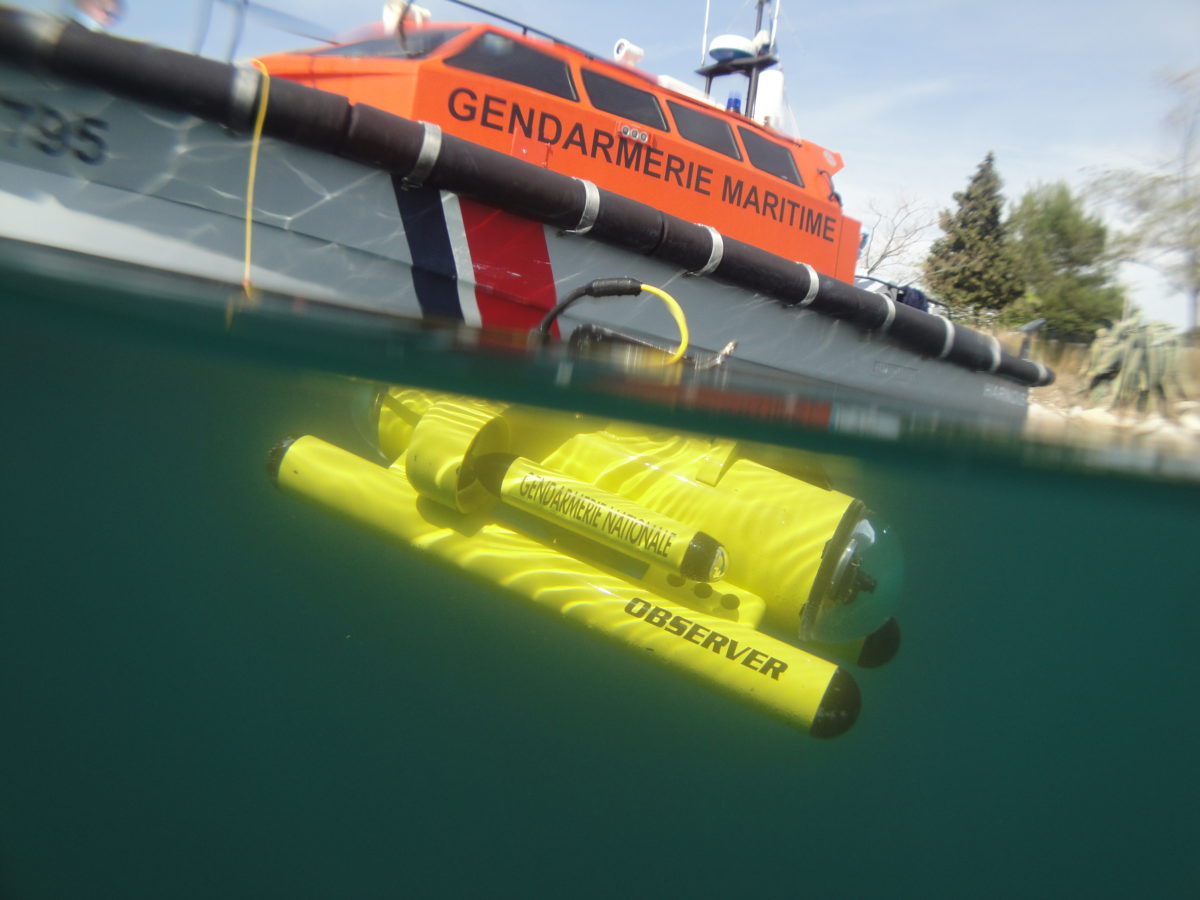

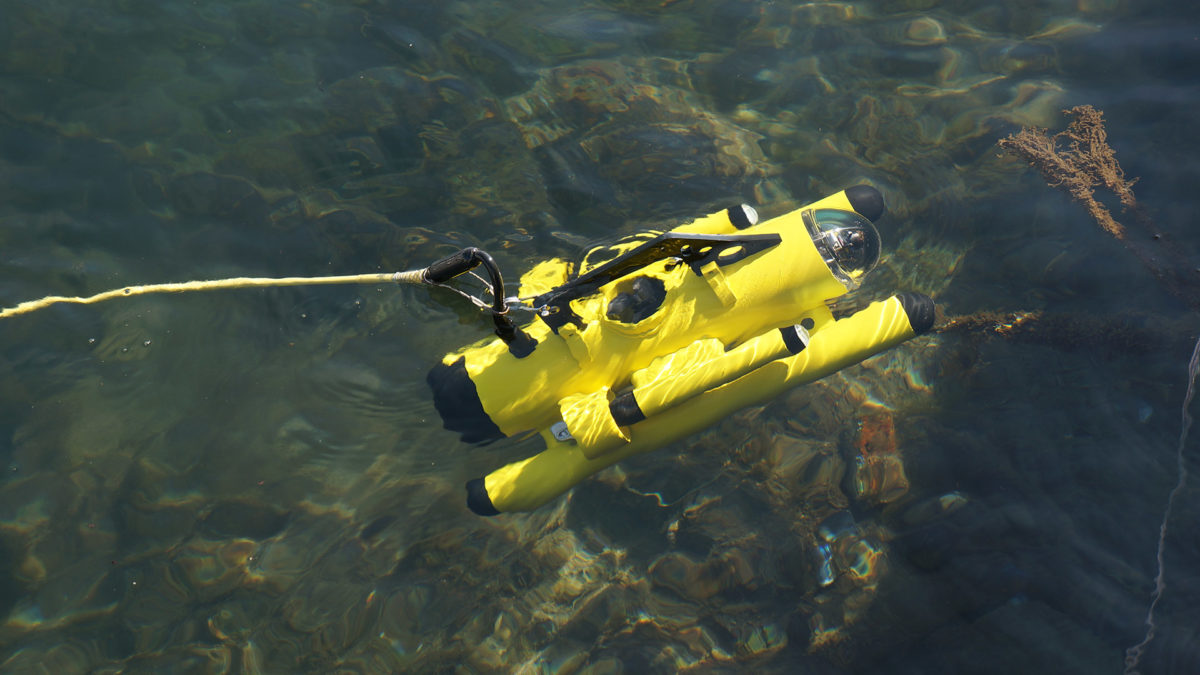

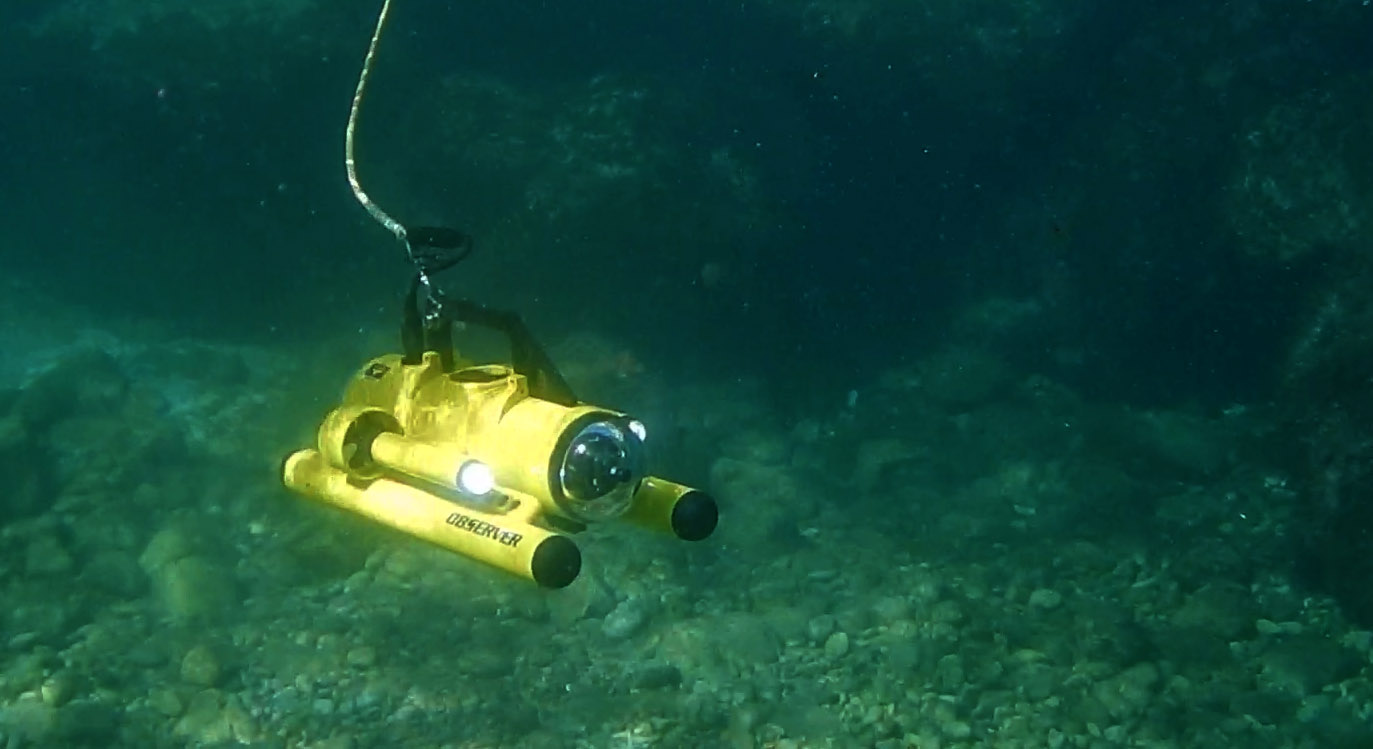

The Observer Micro-ROV is an ultra-portable underwater inspection robot fitted with high resolution colour video cameras and LED lighting, Embedded batteries allow 4h autonomy and operation in the most remote areas down to 150m depth.Thanks to an ancillary plug, various accessories such as sonars, gauges and manipulator can easily be mounted on the Observer.
To meet all your needs, Subsea Tech offers different levels of customization on its range of Micro-ROVs. Find the one that suits you best using the table below.
Need advice? Contact us !
| FINISH LEVELS | STARTER | MAX | ULTRA | |
|---|---|---|---|---|
| CAMERAS | Front Full HD 1080p camera | ● | ● | ● |
| Front Pan & Tilt | ● | ● | ● | |
| Rear Full HD 1080p camera | ● | ● | ||
| Rear Tilt | ● | |||
| Lighting | 2 x 1200-lumen front LEDs with adjustable intensity | ● | ● | ● |
| 1000-lumen rear LED with adjustable intensity d’intensité | ● | ● | ||
| CAPTEURS ET MODES AUTO. | Humidity | ● | ● | ● |
| Temperature | ● | ● | ● | |
| Pressure/Depth | ● | ● | ● | |
| Compass | ● | ● | ||
| Automatic modes | ● | ● | ||
| CONNECTORS & ACCESSORY MOUNTS | Basic | ● | ● | ● |
| Additional | ● | |||
| UMBILICAL | Umbilical length* | 100 m | 100 m | 150 m |
| CONTROL | PC + controller | ● | ● | ● |
| Semi-rugged PC + joystick box | ○ | ○ | ○ | |
| Integrated 17" console | ○ | ○ | ○ | |
| TRANSPORT | Pelicase | ● | ● | ● |
* Umbilical cable extendable up to 300 m
● Included
○ Option
