Mini-ROV Observer

The Observer Mini-ROV is an ultra-portable underwater inspection robot fitted with high resolution colour video cameras and LED lighting, Embedded batteries allow 4h autonomy and operation in the most remote areas down to 150m depth.Thanks to an ancillary plug, various accessories such as sonars, gauges and manipulator can easily be mounted on the Observer.

DEPTH RATED 150M

AUTONOMY 4H

3 THRUSTERS

ULTRA PORTABLE

DEPTH RATED 150M

AUTONOMY 4H

3 THRUSTERS

ULTRA PORTABLE

Subsea Tech offers on its range of Mini-ROV different levels of finishes. Find the one that suits your needs thanks to the table below. Do you need advice ? Contact-us !



Starter

Sense

Max

Ultra

 The essentials for your inspection missionsExtend the field of your possibilitiesComplete and multitaskingEven more equipment
CamerasFront color camera 700 TVL 0,01 lux
Front Pan & Tilt
Rear color camera 700 TVL 0,01 lux
Rear tilt
Lighting2 x front LED 1200 lumens with dimming
Rear LED lighting 1000 lumens with dimming
Sensors automatic modesWater ingress
Temperature
Pressure/Depth)
Compass
Automatic modes
Accessories plug and bracketAccessory plug and bracket
Additional accessory plug and bracket
UmbilicalUmbilical length*50m100m100m150m
ConsoleConsole in waterproof case
Integrated video recorder
TransportROV transport bag
«All-in-one» waterproof case
* Umbilical expandable up to 250m



Options and accessories

Make your Mini-ROV even smarter! Thanks to a multitude of options and accessories, your Observer will become an essential tool for all your underwater observation and inspection missions.

Mini ROV Bras 1
Mini ROV Bras 2
Mini ROV Bras 3
Mini ROV Bras 1
Mini ROV Bras 2
Mini ROV Bras 3

Manipulators et samplers

Subsea Tech has developed its own accessories for Mini-ROV. Among them, a 2-function manipulator that allows the gripping of objects, a cutter to cut cables and ropes, as well as water or sediment samplers.

Mini ROV Sonar 1
Mini ROV Sonar 2
Mini ROV Sonar 3
Mini ROV Sonar 1
Mini ROV Sonar 2
Mini ROV Sonar 3

Sonars

High turbidity does not allow the use of the standard video camera. Acoustic solutions allow imaging even in conditions of zero visibility. Scanning sonar makes it possible to scan a zone for navigation purpose, while 2D multi-beam sonar, also called “acoustic camera”, is a high-performance real-time imaging solution.

See more: BluePrint Subsea sonarsTeledyne BlueView sonars

Mini ROV Sondes 1
Mini ROV Sondes 2
Mini ROV Sondes 3
Mini ROV Sondes 1
Mini ROV Sondes 2
Mini ROV Sondes 3

Acoustic positionning

USBL systems allow location of a target relative to a reference unit on the surface. You can then easily locate your Mini-ROV Observer, which facilitates navigation and increases the efficiency of excursions.

See more: BluePrint Subsea USBL

Mini ROV Sondes 1
Mini ROV Sondes 2
Mini ROV Sondes 3
Mini ROV Sondes 1
Mini ROV Sondes 2
Mini ROV Sondes 3

Measurement probes

Subsea Tech mini-ROV can be equipped with various probes such as: thickness measurement probe, cathodic protection measurement probe or several physico-chemical probes (salinity, conductivity, pH,…)

See more: Cygnus thickness measurementBuckleys CP Probe

Laser pointer

The combination of Subsea Tech’s laser pointer and Inspection Viewer software is a complete solution for measuring all kinds of distances on images captured by the ROV.

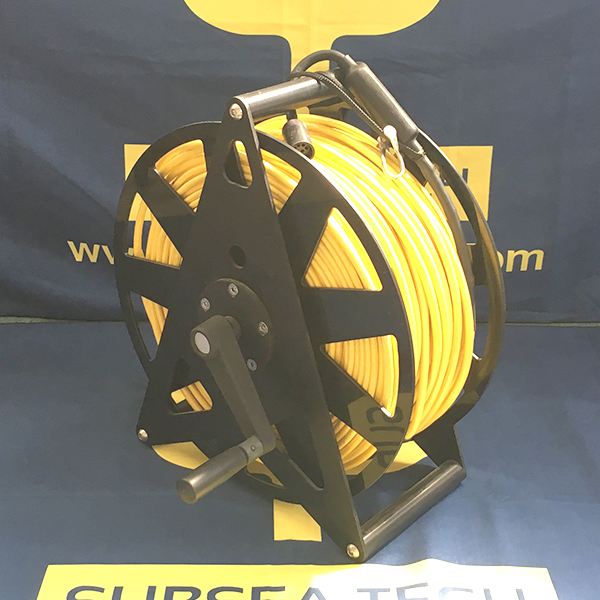

Cable reel

Wind and unwind the umbilical of the mini-ROV easily with this manual winch equipped with a slip ring.

Wheel frame

If you carry out pipe inspections, the wheel frame helps to contain the risk of friction on the walls.

Image enhancement

Increase the quality of your inspections with the LYYN Hawk Board real-time image enhancement system, integrated directly into the console.

You want to integrate other accessories on our Mini-ROV? Contact us
